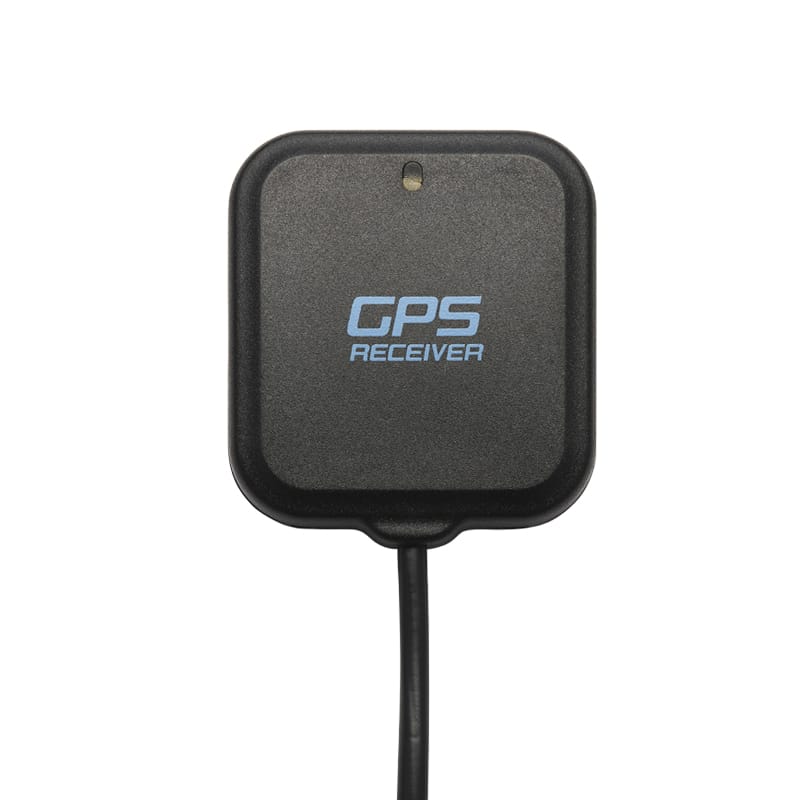

GNSS Receiver
WGM-303
HIGH-SPEC, LOWER PRICES
- 72-Channel High Performance u-blox M8 engine.
- –167 dBm sensitivity for reliable positioning in challenging Conditions.
- Extremely fast TTFF (Time To First Fix) at low signal level.
WGM-30X is a highly sensitive which is a built-in antenna. You can use the GNSS Receiver in automotive navigation, security tracking purpose, map making and fleet management. Providing reliable positioning in difficult environments, meet even the most stringent requirements in versatile industrial and consumer applications, such as UAVs, vehicles (car, truck, bus etc.) and asset tracking. The optional connectors of USB and PS / 2 enable the connection with a laptop, car PC and other electronic devices. It’s compatible with Microsoft Windows 10, 8.1, 8, as well as 7, Vista.
General
GNSS Receiver Type: 72-channel u-blox M8 engine, GPS / QZSS L1 C / A, GLONASS L10F, BeiDou B1I, Galileo E1B / C, SBAS L1 C / A: WAAS / EGNOS / MSAS / GAGAN
Sensitivity: [Tracking & Navigation] -167 dBm, [Reacquisition] -160 dBm, [Hot Start] -157 dBm, [Cold Start] -148 dBm
Antenna Type: Built in Patch Antenna
Protocol / Interface: NMEA0183, USB / RS-232 / UART
Accuracy: 2.0m CEP (GPS / SBAS / QZSS+GLONASS)
Update Rate: Single GNSS Up to 18 Hz, 2 Concurrent GNSS Up to 10 Hz (Default 1 Hz)
Transmission Rate: [RS-232 / UART / USB] 4800, 9600, 19200, 38400, 57600, 115200 (Default 9600 bps); 8 data bits, no parity, 1 stop bits
[USB Only] 230400, 460800, 921600
Assistance: AssistNow GNSS Online, AssistNow GNSS Offline (Up to 35 days) / AssistNow Autonomous (Up to 6 days)
Acquisition Time
Cold Start: 26 sec. (Average)
Aided Starts: 2 sec. (Average)
Reacquisition: 1 sec. (Average)
Dynamic Conditions
Altitude: 50,000 meters max
Velocity: 500 meters / Second max
Acceleration: Less than 4g
Power
Main Power Input: [WGM-303U-E] 5V (From USB), [WGM-303P-E] 5V, [WGM-303PW-E] 5~30V
Power Consumption: Acquisition 50 mA @5V, Tracking 45 mA @5V
Physical Characteristics
Dimension (L x W x H): 40 x 37 x 11 mm
Cable Length: 1.7 M
Operating Temperature: -40°C ~ +80°C
